Quarry Tile Repairs and Restoration at a period cottage Bozeat

The following photos are of a Quarry tiled dining room floor in a period cottage located in the small village of Bozeat. My customer had removed a carpet and discovered them underneath, as you can see from the photographs however the tiles were in a poor state of repair. Undaunted the owner wanted to restore them as a lovely period feature and contacted Tile Doctor.

Quarry Tile Floor Before Restoration Bozeat Cottage Quarry Tile Floor Before Restoration Bozeat Cottage

I went over to survey the Quarry tiles and could see the floor had not faired well under the carpet over the years, several tiles were cracked and 40 to 50 tiles were loose and would needed resetting to stop them moving underfoot, especially in the high traffic areas. I discussed with them that Tile Doctor could repair the floor and clean it and would be able to restore in a few days. They were happy to go ahead with my quote and we arranged a mutually convenient time to carry the work out.

Cleaning and repairing a Quarry Tiled Hallway Floor

My first course of action was to deep clean the floors using Tile Doctor Oxy-Gel which is an alkaline cleaner. Working in small areas the Gel was worked in using a stiff brush on a rotary machine using a little water. As this process was completed in each area, I rinsed off the resulting slurry away with water and then extracted using a wet vacuum. The initial clean removed most of the black staining and paint spots which had occurred over the years, but more work was needed.

The next step was to apply Tile Doctor Grout Clean-Up to further clean up the tiles and tackle the cement residue and other staining. I used a repeat of the cleaning process and rinsed twice with plain water to ensure all traces of product were removed. The next step was to tackle the broken and loose tiles however it was now the end of day one, so after assessing the floor for all repairs required, I installed a portable dryer to aid drying and left for the day.

Quarry Tile Floor During Repair Bozeat Cottage Quarry Tile Floor During Repair Bozeat Cottage

The next day I returned to begin repairs starting by lifting all the loose tiles, working in one square metre sections at a time. Fortunately, my customer had already managed to obtain reclaimed tiles from a reclamation yard so that saved me a job. The colours matched with the originals; however, the reclaimed tiles were slightly larger than the originals and needed to be cut into shape as required. Working methodically, I re-laid the tiles on a fresh bed of screed and grouted them in to match the original floor as best possible.

Quarry Tile Floor During Repair Bozeat Cottage Quarry Tile Floor During Repair Bozeat Cottage

After the repairs were completed I allowed the floor to fully dry for four days, I needed the tiles dry and the newly laid adhesive and grout to set and bed in before the next step. Before leaving I gave my customer strict instructions not to walk over these areas whilst I was gone.

Sealing a Quarry Tiled Hallway Floor

Returning later the following week, I first checked the floor was dry using a damp meter, once satisfied I was able to start the sealing process. The customer had requested a silk finish, however because of the age of the cottage and the possibility of damp in this old floor my choice of sealer was limited to those that are fully breathable.

Quarry Tile Floor After Restoration Bozeat Cottage

On this occasion I chose to apply several coats of Tile Doctor Seal & Go Extra, this product will allow the floor to breathe and provide the desired finish. It was a good decision, and as hoped it enhanced the appearance of the floor beautifully.

Quarry Tile Floor After Restoration Bozeat Cottage

My customer was very happy with the renovation and the transformed floor and left the following feedback:

“Friendly service, reasonably priced and a good standard of work. Has breathed new life into my old quarry tile floor.”



Professional Restoration of a Quarry Tiled Floor in Northamptonshire

Quarry Tiled Floor Restored Following Cottage Remodel in Broughton Village

The following photos are from a 16th Century cottage in the village of Broughton near Kettering which was undergoing major restoration works. The Quarry tiled floor was not as old as the house and was probably installed in the Victorian era. The clients wanted the floor restoring before the plastering of walls and new kitchen was installed. There was also a section where a pantry wall had been removed with tiles missing, so these needed to be replaced with reclaimed tiles that the customer had sourced.

Victorian Quarry Tiled Floor Before Restoration Broughto Cottage

I visited site to look at the project, survey the Quarry tiled floor and give them a firm price for the work. I was confident that we could replace the tiles and we could blend the area in to match the existing. Once the floor had a good clean and seal it would look a lot better.

With the quotation agreed I arranged a date where I would have sole access to the property which is always preferred as it means you do not have anyone walking through whilst your cleaning. This also has the added advantage of not having to take precautions over social distancing.

Victorian Quarry Tiled Floor Before Restoration Broughto Cottage

Restoring a Quarry Tiled Kitchen Floor

On the first day on site I carried out the replacement of the missing tiles. This work started by cleaning up the holes in the floor left by the now removed wall and getting the base level and ready for tiling. Next the reclaimed tiles we cut down to fit the shape left by the wall to match the existing tiling. The fit needed to be exact as any mismatch would show later. Once I was happy with the cuts the tiles were fixed in place with rapid set adhesive and once that had set were grouted in place. The next step would be to give the floor a deep clean, so it was left to dry off overnight.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

The next day with the tile adhesive and grout having gone off overnight I was able to start the cleaning process. Working in sections I began by applying Tile Doctor Oxy Gel to the tile and grout with a little water, leaving it to soak in for ten minutes and then working it into the tiles using a 17 inch rotary scrubbing machine fitted with a black scrubbing pad. A stiff brush was also used along the grout lines to make sure they were equally treated. After scrubbing the now soiled solution was vacuumed off with an industrial wet vac and repeated the process until the entire area had been cleaned.

Tile Doctor Grout Clean Up was then applied using a 1:10 dilution with water. It was mopped it over the entire area to neutralise the tile and remove any grout smears, hazing and mineral deposits which are quite common with floors of this age. The entire area was then given a good rinse with clean water to remove any trace of cleaning product. An industrial fan was also installed and left on site to assist with the drying process until we returned a week later. This would ensure the floor would be bone dry for our return and ready to accept a sealer.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

Sealing a Quarry Tiled Kitchen Floor

Returning the following week, I tested the moisture levels in the tiles with a damp meter. I was conscious that due to the age of the tiles there may be some inherent damp however my plan had worked, and the tests confirmed the floor was indeed dry and ready for sealing.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

The client required a silk finish so I opted to apply several coats of Tile Doctor Seal & Go Extra which would provide the required finish yet is breathable and so will not impeded moisture rising through the floor allowing it to evaporate and not become trapped. This is an important consideration when choosing a sealer for an old floor which don’t have a damp proof membrane installed as trapping moisture under the floor can lead to it reaching out to the walls where it can result in rising damp.

The client was extremely happy with the results and has left the following comments on our feedback page.

“Phil was great. On time and a good worker. Gave good advice and carried out all the work thoroughly. The tiles are now looking much better. Very happy. By Peter B, Kettering”

Victorian Quarry Tiled Floor After Restoration Broughto Cottage



Professional Restoration of a Quarry Tiled Kitchen Floor in Northamptonshire

Quarry Tile Floor

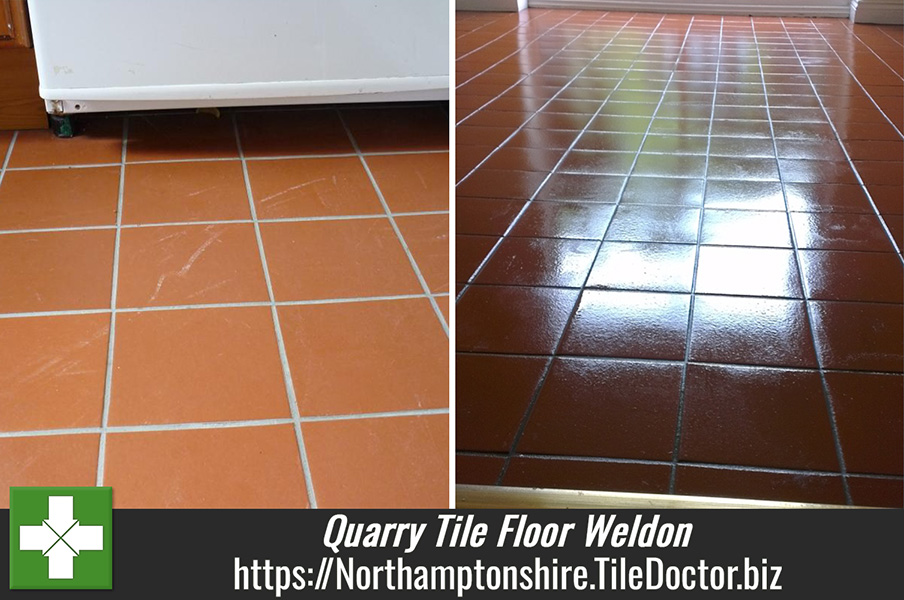

Quarry Tile Floor in Weldon, Northants

I think you will be impressed with these photographs from a Quarry Tile floor we did in Weldon recently. This quarry tiles were installed in the kitchen and went through to the dinning room, hallway and down stairs cloakroom, at total of around 40sq metres

The tiles were recenctly installed and the customer called us in because they were unhappy with the finished result. This can be a common problem with Tilers who do a great job of levelling, tiling and grouting a floor but struggle on their knowledge of sealers. They were hoping for a high gloss finish but were left with a very dull and patchy floor.

Quarry Tile Floor Cleaning

We stripped the entire floor first using Tile Doctor Pro-Clean assisted by a rotary machine fitted with a black pad. This removed most of the sealer, however, we encountered more problems with grout haze which had been trapped underneath the sealer and had not been cleaned off properly to begin with. Also there were still patches of the original sealer which had been applied over a damp floor. The grout haze was removed by hand with wire bushes and more Pro-Clean and then the entire area was blanket stripped. This is an interesting technique unique to Tile Doctor which involves applying Remove and Go mixed with Nanotech Ultra-Clean to tiles and then covering in plastic sheeting and left for several hours to allow to soak into tiles. We then used a steam stripper and a wet vacuum to pick up to remove and rinse off the products. The area was then left to dry for 2 days assisted by dehumidifiers.

Quarry Tile Floor Sealing

After this time we returned to site to take damp metre readings and once we were happy that all areas were dry, we then applied 5 coats of Tile Doctor Seal and Go to protect floors and provide the high gloss finish that the customer requested.

Quarry Tiled Floor Restoration in Northamptonshire
