Quarry Tiled Kitchen Floor Renovation Wollaston

Dirty Quarry Tiled Floor Deep Cleaned and Sealed in Wollaston

This client from the village of Wollaston contacted Tile Doctor about cleaning and sealing their Quarry tiled floor. They were refurbishing the house and wanted to keep the original floor tiles as part of the renovation.

The tiles were installed throughout the ground floor, including the kitchen, lounge and hallway. However, as I was to discover myself, they were covered in years of grime, and they were not sure if they could be restored.

Quarry Tiled Kitchen Floor Before Renovation Wollaston

I went over to survey the floor and could see that any sealer that may have protected the tiles from ingrained dirt had long since worn off and as a result dirt had become ingrained into the pores of the quarry tiles. Once this happens its very difficult to keep clean.

Quarry Tiled Kitchen Floor Before Renovation Wollaston

I had to agree the floor was overdue a deep clean and re-seal and so took some measurements in order to work out a quote for doing the work. The quote was accepted, and a date set for starting the work which would take two days, one to clean and one to seal.

Cleaning a Quarry Tiled Ground Floor

To deep clean the quarry tiles, a strong dilution of Tile Doctor Remove and Go was applied to the floor and left to dwell for a short while. The solution was then scrubbed into the tile using a black scrubbing pad fitted to a rotary machine.

The solution soon turned black with the dirt that was pulled out of the tiles and was rinsed away with water and extracted using a wet vacuum. I inspected the tiles afterwards and could see some paint splashes from years of decorating were still evident, so I re-applied the product and repeated the process to get rid of them.

The grout was then cleaned by hand using Tile Doctor Pro-Clean and a scrubbing brush, again extracting the waste once complete. I find this is the most effective way to clean grout as the pads struggle to reach into the recess of the grout line.

To complete the cleaning process, I then gave the floor an acid rinse with Tile Doctor Grout Clean-up, this was applied to remove old grout smears and further clean up the tiles. All soiling was rinsed off with water and extracted with a wet vacuum. The floor was left to dry off overnight.

Sealing a Quarry Tiled Ground Floor

Returning the following day, the first job was to test the floor with the damp meter to check it was dry. The tiles needed to be dry enough to accept the seal and applying sealer to damp tiles can result in a patchy appearance. This is always worthy checking when cleaning Quarry tiles as that are naturally quite porous so can take some time to dry.

Once satisfied the readings were within the correct range, I was ready to seal. I selected to use Tile Doctor Seal and Go Extra for this, it’s a breathable sealer which is useful for older floors such as this where there is no evidence of a damp proof membrane being installed. Breathable sealers allow for moisture to rise through the tile and evaporate at the surface, without this moisture can build-up under the floor causing it to reach out to the walls where it could cause rising damp.

I applied two coats of Seal and Go Extra waiting for the first to dry before applying the next. The sealer lifts the deep red colours in the Quarry tiles and adds a nice appealing shine. The sealer works by ensuring dirt remains on the surface where it can easily be cleaned away.

Quarry Tiled Kitchen Floor After Renovation Wollaston

My client was very happy with their now clean quarry tiled floor and left the following feedback for me:

“I was looking forward to the results before it was even booked in, and I was not disappointed. A professional approach and very helpful throughout.”

Before leaving I took time to explain how to maintain the floor using Tile Doctor Neutral Tile Cleaner. Its important to use a product like this on a sealed floor as many tile cleaning products are simply too strong and will strip the sealer off the floor with regular use.

Quarry Tiled Kitchen Floor After Renovation Wollaston

Professional Cleaning of a Quarry Tiled Floor in Northamptonshire

Dirty Quarry Tiled Floor Deep Cleaned and Sealed in Wollaston Read More »

Quarry Tile Repairs and Restoration at a period cottage Bozeat

1 Comment / Quarry Tile Cleaning, Wellingborough Tile Cleaning, Work by Category, Work by Location, Work History / Philip Vissian / Black Stains, Bozeat, dining room, northamptonshire, Paint Spots, quarry tile, tile cleaning, Tile Repair, Tile Replacements, tile restoration, Wellingborough

The following photos are of a Quarry tiled dining room floor in a period cottage located in the small village of Bozeat. My customer had removed a carpet and discovered them underneath, as you can see from the photographs however the tiles were in a poor state of repair. Undaunted the owner wanted to restore them as a lovely period feature and contacted Tile Doctor.

Quarry Tile Floor Before Restoration Bozeat Cottage

I went over to survey the Quarry tiles and could see the floor had not faired well under the carpet over the years, several tiles were cracked and 40 to 50 tiles were loose and would needed resetting to stop them moving underfoot, especially in the high traffic areas. I discussed with them that Tile Doctor could repair the floor and clean it and would be able to restore in a few days. They were happy to go ahead with my quote and we arranged a mutually convenient time to carry the work out.

Cleaning and repairing a Quarry Tiled Hallway Floor

My first course of action was to deep clean the floors using Tile Doctor Oxy-Gel which is an alkaline cleaner. Working in small areas the Gel was worked in using a stiff brush on a rotary machine using a little water. As this process was completed in each area, I rinsed off the resulting slurry away with water and then extracted using a wet vacuum. The initial clean removed most of the black staining and paint spots which had occurred over the years, but more work was needed.

The next step was to apply Tile Doctor Grout Clean-Up to further clean up the tiles and tackle the cement residue and other staining. I used a repeat of the cleaning process and rinsed twice with plain water to ensure all traces of product were removed. The next step was to tackle the broken and loose tiles however it was now the end of day one, so after assessing the floor for all repairs required, I installed a portable dryer to aid drying and left for the day.

Quarry Tile Floor During Repair Bozeat Cottage

The next day I returned to begin repairs starting by lifting all the loose tiles, working in one square metre sections at a time. Fortunately, my customer had already managed to obtain reclaimed tiles from a reclamation yard so that saved me a job. The colours matched with the originals; however, the reclaimed tiles were slightly larger than the originals and needed to be cut into shape as required. Working methodically, I re-laid the tiles on a fresh bed of screed and grouted them in to match the original floor as best possible.

After the repairs were completed I allowed the floor to fully dry for four days, I needed the tiles dry and the newly laid adhesive and grout to set and bed in before the next step. Before leaving I gave my customer strict instructions not to walk over these areas whilst I was gone.

Sealing a Quarry Tiled Hallway Floor

Returning later the following week, I first checked the floor was dry using a damp meter, once satisfied I was able to start the sealing process. The customer had requested a silk finish, however because of the age of the cottage and the possibility of damp in this old floor my choice of sealer was limited to those that are fully breathable.

Quarry Tile Floor After Restoration Bozeat Cottage

On this occasion I chose to apply several coats of Tile Doctor Seal & Go Extra, this product will allow the floor to breathe and provide the desired finish. It was a good decision, and as hoped it enhanced the appearance of the floor beautifully.

My customer was very happy with the renovation and the transformed floor and left the following feedback:

“Friendly service, reasonably priced and a good standard of work. Has breathed new life into my old quarry tile floor.”

Professional Restoration of a Quarry Tiled Floor in Northamptonshire

Quarry Tile Repairs and Restoration at a period cottage Bozeat Read More »

Victorian Quarry Tiled Floor Before and After Restoration Broughton

Quarry Tiled Floor Restored Following Cottage Remodel in Broughton Village

1 Comment / Grout Cleaning, Kettering Tile Cleaning, Quarry Tile Cleaning, Work by Category, Work by Location, Work History / Philip Vissian / 16th Century, Broughton, floor restoration, grout cleaning, kettering, Kitchen Floor, northamptonshire, quarry tile, Quarry tiled cleaning, Quarry tiled sealing, reclaimed tiles, Replacement Tiles

The following photos are from a 16th Century cottage in the village of Broughton near Kettering which was undergoing major restoration works. The Quarry tiled floor was not as old as the house and was probably installed in the Victorian era. The clients wanted the floor restoring before the plastering of walls and new kitchen was installed. There was also a section where a pantry wall had been removed with tiles missing, so these needed to be replaced with reclaimed tiles that the customer had sourced.

Victorian Quarry Tiled Floor Before Restoration Broughto Cottage

I visited site to look at the project, survey the Quarry tiled floor and give them a firm price for the work. I was confident that we could replace the tiles and we could blend the area in to match the existing. Once the floor had a good clean and seal it would look a lot better.

With the quotation agreed I arranged a date where I would have sole access to the property which is always preferred as it means you do not have anyone walking through whilst your cleaning. This also has the added advantage of not having to take precautions over social distancing.

Victorian Quarry Tiled Floor Before Restoration Broughto Cottage

Restoring a Quarry Tiled Kitchen Floor

On the first day on site I carried out the replacement of the missing tiles. This work started by cleaning up the holes in the floor left by the now removed wall and getting the base level and ready for tiling. Next the reclaimed tiles we cut down to fit the shape left by the wall to match the existing tiling. The fit needed to be exact as any mismatch would show later. Once I was happy with the cuts the tiles were fixed in place with rapid set adhesive and once that had set were grouted in place. The next step would be to give the floor a deep clean, so it was left to dry off overnight.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

The next day with the tile adhesive and grout having gone off overnight I was able to start the cleaning process. Working in sections I began by applying Tile Doctor Oxy Gel to the tile and grout with a little water, leaving it to soak in for ten minutes and then working it into the tiles using a 17 inch rotary scrubbing machine fitted with a black scrubbing pad. A stiff brush was also used along the grout lines to make sure they were equally treated. After scrubbing the now soiled solution was vacuumed off with an industrial wet vac and repeated the process until the entire area had been cleaned.

Tile Doctor Grout Clean Up was then applied using a 1:10 dilution with water. It was mopped it over the entire area to neutralise the tile and remove any grout smears, hazing and mineral deposits which are quite common with floors of this age. The entire area was then given a good rinse with clean water to remove any trace of cleaning product. An industrial fan was also installed and left on site to assist with the drying process until we returned a week later. This would ensure the floor would be bone dry for our return and ready to accept a sealer.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

Sealing a Quarry Tiled Kitchen Floor

Returning the following week, I tested the moisture levels in the tiles with a damp meter. I was conscious that due to the age of the tiles there may be some inherent damp however my plan had worked, and the tests confirmed the floor was indeed dry and ready for sealing.

Victorian Quarry Tiled Floor During Restoration Broughto Cottage

The client required a silk finish so I opted to apply several coats of Tile Doctor Seal & Go Extra which would provide the required finish yet is breathable and so will not impeded moisture rising through the floor allowing it to evaporate and not become trapped. This is an important consideration when choosing a sealer for an old floor which don’t have a damp proof membrane installed as trapping moisture under the floor can lead to it reaching out to the walls where it can result in rising damp.

The client was extremely happy with the results and has left the following comments on our feedback page.

“Phil was great. On time and a good worker. Gave good advice and carried out all the work thoroughly. The tiles are now looking much better. Very happy. By Peter B, Kettering”

Victorian Quarry Tiled Floor After Restoration Broughto Cottage

Professional Restoration of a Quarry Tiled Kitchen Floor in Northamptonshire

Quarry Tiled Floor Restored Following Cottage Remodel in Broughton Village Read More »

Annual Maintenance of a Victorian-Era Quarry Tiled School Floor in Oundle

1 Comment / Oundle Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / Oundle, Oundle Tile Cleaning, Oundle Tile Sealing, Quarry Tile Cleaning, Quarry Tile Maintenance Plan, Quarry Tile Sealing, Tiled Floor Maintenance Plan

It was back in 2013 that I first visited this school in Oundle to attend to a 150-year old Victorian Quarry tiled floor which, at the time, had extensive problems with damp and a poor performing sealer that had gradually peeled away.

Victorian Quarry Tiles Oundle School in 2012

Over a few weeks, we successfully stripped away the old and ineffective sealant and addressed the damp issues, before applying a breathable sealer. We subsequently allowed the tiles to successfully dry out for several months before returning to the school to provide a light clean and apply our topical sealer, known as Tile Doctor Seal and Go, as the school required a shiny, yet hard-wearing finish.

I posted a story on my website about this original job, which you can see here:

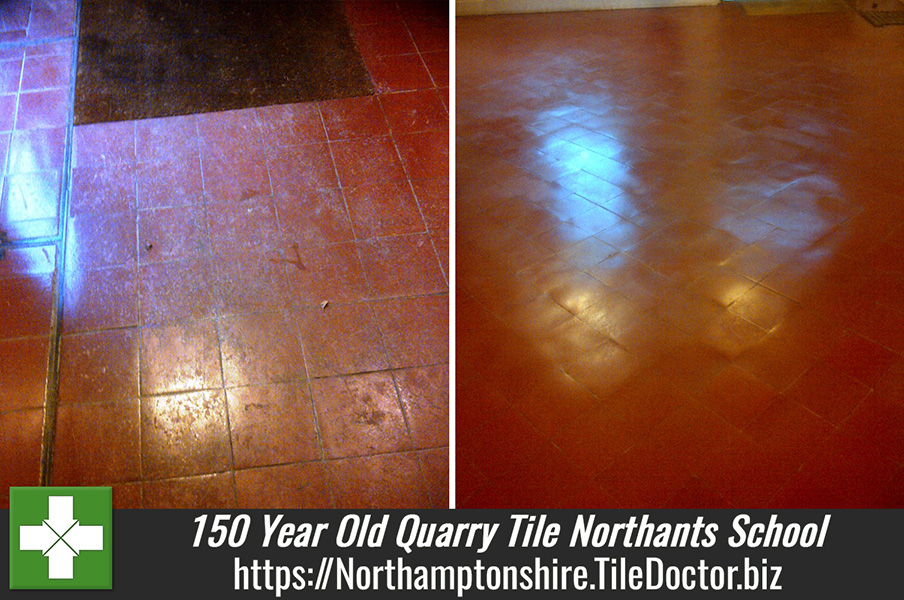

150 Year Old Quarry Tile Restoration in Northants School

As part of my initial visit, I had supplied the school with five litres of Tile Doctor Neutral Tile Cleaner, which is a pH neutral formula designed for regular use, and a white buffing pad. I had also spent an hour with their in-house cleaner (who was already familiar with using a buffing machine) to talk through daily maintenance of the floor, as over 100 children can be walking over these floors at any one time on an almost daily basis.

Of course, not every floor will receive this amount of traffic and suffer from this level of wear and tear, but in these situations Tile Doctor can offer a maintenance plan for our customers.

Victorian Quarry Tiles Oundle School in 2013

Cleaning and Sealing Quarry Tiles for Maintenance

The school have me back annually to carry out a full maintenance clean and seal. This involves, firstly, etching the top coats of sealant with a green diamond-encrusted burnishing pad to remove any build-up of dirt and staining. Then, I rinse the whole floor with fresh water and soak up the residue with a wet vacuum.

After drying the area with fans, I proceed to reapply two fresh coats of Tile Doctor Seal & Go. This is now my fourth year of visiting the school and, as the photos show, an annual maintenance plan is the best way to keep floors in top condition without the disruption caused by a full clean or restoration.

Victorian Quarry Tile After Maintenance Oundle School in 2017

Contact your local Tile Doctor consultant about the maintenance plan we offer for any natural stone flooring after an initial clean.

Professional Victorian Quarry Tiled Floor Maintenance at a School in Oundle

Annual Maintenance of a Victorian-Era Quarry Tiled School Floor in Oundle Read More »

350-Year Old Original Quarry Tiles Salvaged and Restored in Ringstead

1 Comment / Cranford Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / northamptonshire, quarry tiles, ringstead, tile cleaning, tile sealing

It’s not every day that I get to work on a 350-year old property, however, not too long I was contacted by a client who was in the process of renovating one in the village of Ringstead, complete with an original Quarry tiled floor.

After removing the old flooring in the property, the client had discovered a broken-up screed of concrete covering the original tiles, the remnants of which can be seen in the photos below. He proceeded to manually scrape the screed off over the course of several days – successfully removing about 60 per cent of it – but found there to be many stubborn areas and instances where the tiles were badly cracked and would need replacing.

As a passionate renovator, the client treats restoring old properties as a labour of love, and only recruits professional help when he really needs it, so it was a real compliment to be consulted to see if the floor was salvageable. I’ve worked on floors in an equally bad state before so I was confident it could be restored, I provided a quote which was accepted and a date was agreed to start the work.

Cleaning 350-Year Old Quarry Tiles

Upon arriving at the property, my first course of action was to run my rotary machine, fitted with a dry concrete cleaning brush, over the entire area to remove dust and etch the area to allow the cleaning products to permeate the surface of the screed. I then vacuumed the area thoroughly before applying Tile Doctor Acid Gel across the entire area.

Acid Gel is a blend of phosphoric and hydrochloric acids in gel form which helps to remove inherent grout haze, efflorescence and other stubborn staining. The product was left to dwell for 20 minutes, before I repeated the action with the concrete cleaning brush to work the product into the tiles. Acid Gel was left on for a further 10 minutes and agitated with handheld brushes to clean the stone. Following this, the resulting cleaning slurry was removed with a wet-vac machine.

To complete the cleaning process, I used a long handled scraper to score along the top of the remaining concrete and break it down by applying Tile Doctor Grout Clean Up, which is essentially the liquid version of Acid Gel. I carried out this action twice to ensure the removal of all the concrete.

Sealing 350-Year Old Quarry Tiles

The floor was then allowed to dry for 4 days; properties of this age have no damp proof membrane to the this provided time to allow excess moisture to evaporate following the cleaning.

Returning to the property, I ran some quick deal tests to check that the Quarry tiles were ready to sealed. Once I was satisfied with the condition of the floor I proceeded to apply two coats of Tile Doctor Colour Grow, our impregnating, breathable sealant which offers provides robust protection and enhances the natural reddish shades in the Quarry.

The client was very pleased with the results. Our work has helped him massively along the way to the complete renovation of this great property. His long-term plan is to keep the Quarry tiled floor as it is, however when he encloses the area under the stairs he will use the tiles from that area to replace cracked and damaged tiles that are in the centre of the room. If more tiles he intends to source them from a reclamation yard.

Professional Restoration on a antique Quarry Tiled Floor in Northamptonshire

350-Year Old Original Quarry Tiles Salvaged and Restored in Ringstead Read More »

Restoring Victorian Quarry Tiles at St. Mary’s Church, Far Cotton

1 Comment / Northampton Tile Cleaning, Quarry Tile Cleaning, Victorian Tile Cleaning, Work History / Philip Vissian / church cleaning, far cotton, northamptonshire, st mary's church, tile cleaning, tile sealing, Victorian tiles

The following job was a bit different from the kitchen and hallway restorations we normally get asked to do, in fact this request came from the vicar of St. Mary’s Church in Far Cotton who wanted us to restore some beautiful old Quarry tiles which lead up to the main aisle. The church dates back to 1885 and given the wear on some of the tiles I can only assume they date back to the same Victorian period; the church is a really welcoming, community-focused place, so it was a pleasure for me to be asked to complete the work.

The vicar’s main concern was the large amount of melted candle wax around the font – so much so that this his normal cleaners had been unable to remove it. He also wanted to know if the floors could be sealed to make ongoing maintenance easier – and this was certainly something we would be able to provide. The following photos show the condition of the floor before we started.

Victorian quarry tile cleaning St. Marys church

Cleaning Victorian Quarry Tiles

The next photo shows the work in progress from halfway down the aisle. We started by breaking down any old sealer and the troublesome candle wax, using a black stripping pad in combination of Tile Doctor Pro Clean to deep clean the floor. Since Pro Clean, a high alkaline cleaner, is highly versatile and can be used on all kinds of natural stone and tile.

While the church has cleaners that come in regularly to keep the building tidy for the parishioners, the old tiles really benefitted from a deep clean which tackled the stubborn ingrained dirt and staining that had built up over many years.

Sealing Victorian and Quarry Tiles

Once I was satisfied that the tiles had been cleaned to the best of my abilities, they were then left for two weeks to fully dry as it is an old church and, understandably, there were some inherent damp issues. As aforementioned, the vicar was keen to have the tiles sealed to make them easier to keep clean and protect them against ingrained dirt and staining for the future. There are only a few situations in which we wouldn’t recommend sealing tiles, such as if they are patio tiles which will already be under constant exposure to the weather.

The best choice of sealer for this particular situation was Tile Doctor Colour Grow, which is an impregnating, breathable sealer that won’t trap moisture in the floor and will provide great protection against further staining. Additionally, as an impregnating sealer, Colour Grow penetrates into the pores of the tile protecting it from within and with the added benefit of enhancing the natural colours and restoring the life and character back in the old, dull tiles. I applied it using a paint pad, before polishing it off.

I’m pleased to report that the restoration was a great success. The vicar was very impressed with the work, and I’m sure the church community will also be very happy with the new, vibrant tiles.

Professional Quarry and Victorian Tiled Floor Restoration at a Northamtonshire Church

Restoring Victorian Quarry Tiles at St. Mary’s Church, Far Cotton Read More »

Colour Restored to a Faded Black and Red Quarry Tiled Floor in Welton

1 Comment / Daventry Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / northamptonshire, quarry tiles, tile cleaning, tile sealing, welton

There are numerous factors that can contribute to a Quarry tiled floor looking worse for wear, including lack of sealer, dampness issues, and the wrong type of cleaning products. Unfortunately, this black and red Quarry tiled floor was suffering from a combination of all three: there was no sealer evident to protect against dirt and stains, and dampness in the sub-floor had caused the tiles to fade in colour and shine. The red tiles especially had faded so much that they appeared almost white.

Black and Red Quarry Tiles Welton Before Cleaning

The property owner, who lives in the town of Welton, near Daventry in Northamptonshire, was desperate to have the floor professionally restored as her efforts to clean the tiles with run-of-the-mill household products had gone unrewarded. To ensure the appearance of Quarry tiles in this high traffic area of the house, I would need to provide a deep clean and a robust, impregnating seal to prevent future damage.

Cleaning a Dirty Black and Red Quarry Tiled Floor

As is the case with most types of tiled floor in this condition, I deep cleaned this floor using our powerful alkaline cleaner, stripper, degreaser, Tile Doctor Pro Clean. The cleaning method involved spreading strong dilution of Pro Clean evenly across the floor and leaving it to dwell for a short period. This allows it to seep into the tile to help lift out and dissolve ingrained dirt.

I then agitated the solution with a scrubbing pad fitted to my rotary machine to ensure all layers of muck were removed, and then thoroughly rinsed the floor to remove the excess cleaning chemicals.

Sealing a Black and Red Quarry Tiled a Floor

Since the floor was suffering from particularly prevalent damp issues, I left it to dry for ten days (usually 24 hours will suffice) before I returned to the property to commence the sealing process. Arriving back at the property a week and a half later, I immediately took several damp meter readings to ensure the floor was dry enough for a sealant to be applied. This is incredibly important: the slightest quantity of outstanding moisture can cloud the sealant and damage its performance.

Thankfully the ten days had given the floor ample time to dry fully, and I went ahead with applying two coats of Tile Doctor’s impregnating, colour enhancing sealant called Colour Grow. As you can see from the second photo, the sealant really bought the depth of colour back to the floor, making it look very pleasing to the eye. The customer was especially pleased that the red tiles actually look red again!

Black and Red Quarry Tiles Welton After Cleaning

Professional Restoration of a Faded and Dirty Black and Red Quarry Tiled Floor in Welton, Northamptonshire

Colour Restored to a Faded Black and Red Quarry Tiled Floor in Welton Read More »

Extremely Dirty and Damp Quarry Tiled Floor Restored in Higham Ferrers

1 Comment / Quarry Tile Cleaning, Rushden Tile Cleaning, Work History / Philip Vissian / dining room, higham ferrers, northamptonshire, quarry tiles, tile cleaning, tile sealing

This red Quarry tiled floor was in the dining room of a house in the East Northamptonshire market town of Higham Ferrers. Despite being an original feature of the property, the floor had never been taken care of and looked to be completely beyond salvation and what must be the worst condition I have seen in a long time.

Red Quarry Tiles Higham Ferrers Northants Before

When I first inspected the floor it became very quickly clear that it was suffering from severe damp problems, covering roughly two thirds of the entire surface area. I took damp meter readings and discovered that the floor was saturated as there was no damp proof course installed. This problem was compounded by staining from the glue residue used to hold down the linoleum which previously covered the tiles. But while some floors look beyond salvation, I was certain I could restore this one to an acceptable appearance.

A hallway in the property had the same Quarry tiles, but these had been painted with a red tile paint at some point in the past, which itself had worn off in the main traffic areas. These tiles had no damp problems and so it would just be a case of removing the rest of the paint and providing a thorough cleaning before sealing.

The customer was also keen that the dining room be restored as near as possible to the hallway tiles to try and achieve a uniform finish. I did inform the customer that due to the vast difference in condition this would be a challenge but I would do my best. A quote was given and work was booked in at the customer’s convenience.

Cleaning Extremely Dirty Quarry Tiles

Before beginning the restoration, I carried out a patch test to see which products would achieve the best results on the tiles. After vacuuming and mopping the floor to remove the immediate layers of muck, I decided my best course of action would be to use the heavy duty stripper, Tile Doctor Remove & Go.

Working in four separate sections, I applied the product then scrubbed it using a black stripping pad to a rotary machine. Remove & Go is designed to break down old sealers, paints and glues, making it an ideal product for use in this particular situation. This area was then rinsed off with a wet-vac machine and the process was repeated on the rest of the floor.

I then inspected the floor and noticed a few shiny patches where the old sealer hadn’t been fully removed, so I tackled these stubborn areas by hand with a second application of Remove & Go. A final rinse was given to the whole floor to make sure no excess cleaning products remained.

Sealing Quarry Tiles

After completing the cleaning process and removing as much water as possible using a wet vacuum, I installed a dehumidifier and left the tiles to dry for an entire month. Upon my return to the property I took damp meter readings to ensure the tiles were fully dry prior to the application of the sealer. This is crucial as excess moisture can cloud the sealer, rendering it less effective at protecting the stone.

I opted to use Tile Doctor Colour Grow to seal the floor primarily because is fully breathable and therefore ideal for floors that are prone to damp problems. It has the added bonus of being a colour intensifying sealer that really enhanced the natural reddish shades in the Quarry.

Red Quarry Tiles Higham Ferrers Northants After

As the pictures show, there was a vast improvement in the floor and the customer was pleased with the results. It really goes to show that while a floor might look beyond salvation, wait can in fact be restored to an acceptable condition using the right methods and products. The customer was also given advice on maintenance of this type of floor to keep it looking its best for years to come.

Professional Quarry Tiled Floor Restoration in Northamptonshire

Extremely Dirty and Damp Quarry Tiled Floor Restored in Higham Ferrers Read More »

Cleaning and Sealing Quarry Tiles with Damp Issues in Thrapston

1 Comment / Cranford Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / northamptonshire, quarry tiles, Thrapston, tile cleaning, tile sealing

This property was situated only a few hundred yards from the River Nene in Thrapston, near Kettering in Northamptonshire. And, while it is certainly nice to live next to a river, it can cause long running damp issues for certain properties, as was the case with several houses along this road. I was particularly aware of this, having treated a floor in a similar area of the town.

This client had recently uncovered a Quarry tiled floor which had remained hidden under Linoleum for a long time. She wanted professional help and advice on restoring the floor back to looking its best, and was especially aware that it was marked by white patches of efflorescence (mineral salts).

I explained to the client that the damp issues can never be completely rectified without building work being undertaken to install a damp proof membrane. Unfortunately, this is a very expensive process. Nonetheless, the following is an account of the results which can be achieved with badly stained Quarry tiles using professional methods and products.

Cleaning a stained Quarry tiled floor

I arranged a date to do the work on my return the first stage in the floor restoration was to give the tiles a deep clean. This was done with a high alkaline cleaner known as Tile Doctor Pro Clean, which is applied to the floor and left to dwell for a short period, before being agitated with black stripping pad fitted to a rotary floor buffing machine. This strips away any old sealer and lifts away trapped dirt. The soiled solution was then rinsed away using clean water, and the resulting slurry was soaked up using a wet vacuum.

Following this I gave the floor an acid rinse with Tile Doctor Grout Clean-Up in order to neutralise the mineral salts. Then, to draw the contaminants completely out of the tiles – and to assist with the cleaning process – I applied the heat of a steamer.

To complete the cleaning process the floor was rinsed down again which was again was removed with a wet vacuum which extracted as much water from the floor as possible. I then installed a powerful industrial dehumidifier and allowed two weeks for the floor to dry completely. However, I was aware that given the extent of the damp issues that this might not, in fact, be long enough.

Upon my return to the house, I took further damp meter readings to discover that the floor was indeed still damp. I suggested that the best course of action in this scenario was for my client to carry out daily mopping with a mild acid solution of Tile Doctor Grout Clean-Up for a period of three weeks to help tackle the inherent salt issues that had been present for many years.

Sealing a Quarry tiled floor

After the three weeks had passed, I was able to apply just a single coat of Tile Doctor Colour Grow, which is a breathable impregnating sealer that allows for effective moisture vapour transmission. It also contains colour intensifying properties to help enhance the natural shades in the Quarry stone.

The client also purchased some Colour Grow sealer for her to apply herself later in the Spring, as the floors were still too damp for the two to three coats that I would normally apply.

The photographs show what can be achieved with Quarry tiles suffering from inherent damp issues. Although they may still look slightly patchy, rest assured that by the Spring they will have dried out sufficiently enough to apply more sealant – this will achieve the desired finish.

Dealing with Damp and Stained Quarry Tiles in Northamptonshire

Cleaning and Sealing Quarry Tiles with Damp Issues in Thrapston Read More »

Cleaning and Sealing a Victorian Quarry Tiled Hallway Floor in Stamford

1 Comment / Ashton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / hallway, northamptonshire, stamford, tile cleaning, tile sealing, Victorian tiles

This hallway floor was actually at a house in the town of Stamford which is just over the northern border of Northamptonshire and slightly out of my area; however I was recommended to the owner by another client which is always welcome and a testimonial in itself. I work right across the county so it wasn’t long before I was in the general area and arranged a visit to carry out an inspection of the Victorian Quarry tiled floor and provide a quote for a full restoration.

The owner of the house had just moved in recently and although the floor was in good overall physical, it was in need of a thorough clean and new seal to bring back some life to the tiles. Additionally she was having lots of other building work done to the house and she wanted to retain this as an original feature of the property. My quote was accepted and I was able to book the work in for the following week.

These first photos show how dull the floor looked due to a build-up of builder’s dust and general wear and tear. They also show some of the equipment needed to undertake the following cleaning process.

Victorian Tiles Stamford Before Cleaning

Cleaning a Victorian Tiled Hallway Floor

I used a brush and vacuum to remove as much loose debris and dust from the surface of the floor as possible. I then applied a strong dilution of Tile Doctor Pro Clean to the floor which is a strong alkaline cleaner which can also be used to remove sealers; the solution was left it to dwell for roughly ten minutes before agitating it with scrubbing pads and brushes to remove the muck that was lifted to the surface. This was then wet-vacuumed twice to remove all the slurry and neutralise any chemicals.

As it was such an old property I then used a steamer to heat up the tiles and draw up any contaminants and assist with the drying process. I also chose to install two fans and a dehumidifier to dry the floor even further.

Victorian Tiles Stamford After Stripping and cleaning

With the cleaning process complete – and achieving a marked difference to the appearance of the floor – I left the tiles to finish drying for 24 hours.

Sealing a Victorian Tiled Hallway Floor

Upon my return to the house, I checked for any excess moisture by running damp tests as this has the potential to affect the performance of the sealer. Once satisfied with the results, I sealed the floor with two coats of Tile Doctor Colour Grow, a colour enhancing sealant which offers both a robust surface seal and an aesthetically pleasing finish.

I also carried out water repellency tests to ensure the sealer was working as expected and the floor had sufficient protection and will be hard-wearing for a hallway which is a high traffic area.

On my client’s return to the house she was very happy with the final results – in fact, she was also in contact about some further work in the New Year!

Professional Victorian Quarry Tile Floor Stripping, Cleaning and Sealing

Cleaning and Sealing a Victorian Quarry Tiled Hallway Floor in Stamford Read More »

Victorian Tiles After Restoration Northampton

Restoring a Victorian Quarry Tiled Hallway in Northampton

1 Comment / Northampton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / hallway, northampton, northamptonshire, tile cleaning, tile sealing, Victorian tiles

Here’s a job I completed just before Christmas last year, at a house in Northampton which has a rich history and mix of architectural styles. The run up to Christmas is always popular as people try to get their household projects finished off in time for celebrating the festive season with family so this is always a busy time for Tile Doctor.

The photos below show a neglected Victorian Quarry tiled floor in need of repair, with cracked tiles along the edges. These were caused by somebody in the past using brute force to remove carpet gripper rods which had been glued to the tiles. These cracks were present around the edges of the entire hallway, however; this particular type of tile is very hard to get hold of. Furthermore, it is a costly process to replace the tiles as the skirting boards would have had to have been removed.

Victorian Tiles Before Cleaning Northampton

As well as the physical issues the floor had a dull appearance due to the build-up of builder’s dust and the general wearing down of the paintwork over time. I agreed with the client that the best course of action would be to fill the tiles, and paint the damaged tiles using a colour that matched as close as possible. Many of my Tile Doctor colleagues would disagree with this approach opting to source the correct tile and rebuild the damaged section however unfortunately in this case we didn’t have the time or the budget.

Cleaning and Repairing a Victorian Quarry tiled floor

My first action was to use a brush and vacuum to remove as much loose debris and dust as possible. I followed this by agitating the tiles with a dilution of Tile Doctor Pro Clean which is a strong alkaline product and safe to use on tile and stone. I use a combination of a coarse burnishing pad fitted to a rotary machine and hand held brushes, in order to get the floor clean. The resulting slurry was then rinsed and removed using a wet vacuum. This process was repeated twice followed by a thorough rinse to ensure any trace of cleaning agent had been removed and the floor neutralised.

Victorian Tiles During Cleaning Northampton

As this was such an old property, I then used a steamer to heat up the tiles in order to draw out any contaminants and assist with the drying process. I installed a fan to dry the floor before starting repairs, mixing up some coloured grout and filling all holes and cracks along the edges, including the doormat area.

Victorian Tiles During Repair Northampton

I allowed the coloured grout to dry overnight, before hand painting the black and Terracotta tiles. These were then given time to dry (about a couple of hours). Following this, I carefully painted in the other colours: brown and cream. The overall effect was quite convincing and you had to look very closely to notice.

Victorian Tiles Before Painting Northampton

Victorian Tiles After Painting Northampton

Sealing a Victorian Quarry tiled floor

Due to the fact that there were other tradesmen working in the house at the time, the floors were sheeted up to protect from additional dust and muck. I then left the house for a week, allowing the floor ample time to dry completely in preparation for sealing.

Upon my return, I took damp meter readings, and once satisfied with the dryness of the tiles, I began the sealing process with the impregnating, colour-enhancing sealer Tile Doctor Colour Grow. The sealer provides both durable surface protection and an aesthetically pleasing matte finish.

The below photos show how the product has enriched the colours with the two coats applied.

The process of restoring this wonderful Victorian Quarry tiled floor was certainly time consuming, but very rewarding. I am exceptionally pleased with the results myself, and my client couldn’t have been happier and I’m sure the newly revitalised hallway will have been a talking point for all their visitors during the Christmas break.

Victorian Tile Repairing, Cleaning and Sealing in Northamptonshire

Restoring a Victorian Quarry Tiled Hallway in Northampton Read More »

Red Quarry Tiles Stripped and Sealed Abington

Red Quarry Tiled Floor Restored in Abington

1 Comment / Northampton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / abington, northamptonshire, quarry tiles, tile cleaning, tile sealing

Here’s an interesting work I recently completed on a red Quarry tiled floor at a house in the town of Abington, Northampton. In post-war Britain (more specifically in the 1940s and 1950s), many new homes were built with Quarry tiled hallways and kitchens, so quite a popular feature back then. These floors are typically quite hard wearing and therefore ideal for such high traffic areas; additionally they don’t need a great deal of maintenance but their appearance will degrade over time.

Red Quarry Tiles Before Cleaning and Repair Abington

In this particular house, the Quarry tiled floor had been covered with linoleum for many years, causing significant patches of visible black mould. The floor also had a loose tile (which I promptly reset to mitigate the potential tripping hazard) and splashes of paint due to a lack of precaution while the house was being renovated. Needless to say, the floor needed a lot of work.

Cleaning a Red Quarry Tiled Floor

Before beginning the cleaning I made sure to vacuum up all of the loose debris from the floor. I then applied Tile Doctor Remove & Go to the tiles, left it to dwell for a short period, and then agitated the area with a black stripping pad, adding water to aid the process. This helped to break down any old and ineffectual sealer, along with the paint splashes marking the tiles, leaving a much cleaner and more refined appearance.

Red Quarry Tiles After Cleaning and Repair Abington

I followed this up with Tile Doctor Grout Clean-Up to eliminate the odd speck of cement and grout haze dating back to when the floor was first installed; Gout Clean-up has an acid base so it’s not advised to leave it on the tiles for too long, consequently as soon as I was happy it had done the job I rinsed it off with water and give the floor a thorough wash down.

I used a wet-vacuum machine to extract as much water as possible and gave the floor a once over with steam cleaner which improves the evaporation of any remaining moisture by heating up the tiles.

Red Quarry Tiles Stripped after cleaning Abington

Sealing a Red Quarry Tiled Floor

After completing the cleaning process, I left the house to allow time for the floor to dry completely. Upon my return, I conducted a damp test which showed the floor needed to dry further before sealing so I left an industrial fan in place for a couple of hours to help speed things up.

Once I was satisfied that the floor was dry enough to take the sealant, I sealed the floor using Tile Doctor Colour Grow which is an interesting product that will not only provide durable stain protection but also improves the natural colours of the tile.

While the floor required a lot of time and work to restore, I think you will agree the results were certainly worth waiting for.

Quarry tiles repaired, cleaning and sealed in Northamptonshire

Red Quarry Tiled Floor Restored in Abington Read More »

Old Quarry tiled floor after restoration Hackleton

Quarry Tiled Hallway Cleaned and Restored in Hackleton

1 Comment / Northampton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / Hackleton, hallway, northamptonshire, quarry tiles, tile cleaning, tile sealing

This was a restoration I did for a couple living in Hackleton, Northampton, who had just moved into their new home and wanted their recently discovered Quarry tiled hallway fully restored before their housewarming party.

Old Quarry tiled floor before restoration Hackleton

The couple had lifted up the carpet upon moving into the house to find a dirty and damaged floor beneath. It had been marked with glue around the edges where the carpet gripper rods had been stuck down upon installation. My clients had attempted to remove the unsightly glue marks themselves using a chisel and hammer. Unfortunately, the DIY job actually caused further damage to one tile, leading to the couple seeking the services of a professional to complete the job properly. It was especially important to have the floor ready quickly, as there was only ten days to go before the housewarming party.

Stripping and cleaning a Quarry tiled hallway

After providing the couple with a quote, I began working on the hallway. My first task was strip the Quarry tiles of the old sealer using a combination of black stripping pads and Tile Doctor Remove & Go, a multi-purpose product which contains both strpping and cleaning properties. Remove & Go was left to soak into the tiles before being scrubbed into the floor using a rotary scrubbing machine. After successfully breaking down the layers of old sealer, I rinsed the floor using clean water and soaked up the residue with a wet-vac machine.

The next stage of the job involved removing the old glue marks by hand from around the edges of the hallway. This was painstaking work in which I utilised both a scraper and a hand brush to carefully rid the tiles of these blemishes. Working in small, two metre sections of the floor, I then applied a second coat of Remove & Go, allowed it to soak into the area for a further ten minutes, and then rinsed it with clean water. During my inspection of the floor I also noticed a few splashes of paint, which I duly removed by hand.

Sealing a Quarry tiled hallway

Due to the pressure on time leading up to the housewarming party, I needed to speed up the drying process. I did this by installing a dehumidifier and a turbo fan. The floor was then left to dry for more than 24 hours before I returned to complete the sealing.

Upon my return I took damp meter readings in order to determine which sealer would be the best to use. I resolved to use Tile Doctor Colour Grow, an impregnating sealer which is fully breathable, allowing dampness to escape from this type of tile. This is important, as the tiles had been first installed many years ago with no damp proof membrane. As the sealer dried it provided the floor with a nice, light sheen. Since Colour Grow is also specially designed for colour intensification, the fantastic natural shades and colours in the Quarry were really brought to life again.

My clients were extremely pleased with the results, with the prompt and efficient service ensuring that the job was completed in good time for their housewarming party.

Restoring a Quarry Tiled Hallway in time for a Party in Northamptonshire

Quarry Tiled Hallway Cleaned and Restored in Hackleton Read More »

Victorian Quarry Tiled Floor Finedon After

Restoring a Victorian Quarry Tiled Hallway in Finedon

1 Comment / Cranford Tile Cleaning, Quarry Tile Cleaning, Victorian Tile Cleaning, Work History / Philip Vissian / cleaning services, cleaning victorian floor, finedon, floor restoration, northamptonshire, sealing victorian quarry tiles, tile cleaning, tile maintenance, tiled floor, victorian quarry tiles

The following photos are from a property in Finedon, Wellingborough where like so many of my customers it seems the owner was in the middle of a full property restoration which included plans to bring the original Victorian hallway Quarry tiles back to life. Tile Doctor restores hundreds of Victorian floors across the UK every year so she gave us a call. I came round to take a look at the tiles and could see that the floor had been covered with Linoleum for many years which had been fixed with adhesive we was still evident on the tiles along with old wax based sealers which would need to be stripped off. In general the floor was now looking very dull and uncared for.

Victorian Quarry Tiled Floor Finedon Before

Cleaning Victorian Quarry Tiles

To remove the glue and restore the tiles a dilution of Tile Doctor Remove and Go was left to soak into the pores of the tile for twenty minutes before being brushed in with a rotary machine fitted with a black stripping pad. Once done the floor was rinsed down thoroughly with water and the remaining solution removed with a wet vacuum, this revealed a few areas that needed re-treating so the whole process was repeated until I was happy that the glue and old sealers were gone and the tile and grout was as clean as I could get it. This process took up much of the day and after using the wet vacuum again to get the floor as dry as possible I left a couple of fan dryers in place to assist with the drying.

Sealing Victorian Quarry Tiles

The floor was left for a few days so it could dry out thoroughly and then checked for dampness and remaining staining, the floor was dry but there were a few areas that needed further attention which were spot treated and then dried out with a hand drier. To protect it and make it easier to clean in the future the floor was then sealed by applying a number of coats of Tile Doctor Seal and Gof which added a nice light sheen finish to the look of the tile.

Victorian Quarry Tile Restoration in Finedon, Northamptonshire

Restoring a Victorian Quarry Tiled Hallway in Finedon Read More »

Kitchen Quarry Tile Cleaning and Sealing in Rushden

1 Comment / Quarry Tile Cleaning, Rushden Tile Cleaning, Work History / Philip Vissian / commercial kitchen, floor maintenance, northamptonshire, quarry tile restoration, quarry tiles, re-sealing, Rushden, stained grout, tile cleaning, tiled floor

This job was to strip and re-seal these Quarry tiles installed in a commercial kitchen which was undergoing refurbishment at a canteen in Rushden, Northamptonshire. The tile finish had dulled and there was a lot of staining to the grout.

Cleaning Quarry Tiles

As there was little in the way of kitchen units to protect I go straight down to stripping down the floor using a strong dilution of Tile Doctor Pro-Clean which is a multi-purpose cleaner/stripper that’s safe to use on stone, tile and grout. The solution was applied with a mop and left it to dwell on the floor for twenty minutes in order to give it chance to soak into the tile surface and get to work on the existing sealer and dirt. It was then worked into the floor using a rotary machine fitted with a black scrubbing pad and stiff hand brushes were used along the grout lines to get the grout clean. The resulting soiled solution was picked up with a wet and dry vacuum and the floor was then rinsed with clean water to neutralise the tile and stubborn areas re-treated. Once I was happy the floor was given a final rinse and then left to dry overnight ready for sealing the next day.

Sealing Quarry Tiles

After checking the tiles had dried I proceeded to seal the floor using four coats of Tile Doctor Seal and Go which will protect the floor from staining going forward and also adds a nice shine to the tile.

Commercial Kitchen Quarry Tile cleaning in Northamptonshire

Kitchen Quarry Tile Cleaning and Sealing in Rushden Read More »

Quarry Tiled Kitchen Floor After Cleaning and Sealing

Kitchen Quarry Tile Cleaning and Sealing in Daventry

1 Comment / Daventry Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / cleaning services, Daventry, floor maintenance, floor restoration, kitchen, northamptonshire, quarry tile maintenance, quarry tiles, sealing, tile cleaning, tiled floor

Apologies for the poor quality of these grainy Quarry Tile Cleaning photographs taken in the kitchen of a residential property in Daventry but it was the middle of winter and I was using my phone camera which doesn’t have an effective flash. Hopefully you can see from the photograph below how dirt had become ingrained into the tile and stains to the grout.

Quarry Tiled Kitchen Floor Before Cleaning

Cleaning Quarry Tiles

To get the floor clean I removed the kick boards around the base of the kitchen units and applied a dilution of Tile Doctor Pro-Clean mixed with NanoTech Ultraclean which adds tiny abrasive particles to an already powerful alkaline cleaning product that is safe to use on tile and stone. It was applied with a mop and left it to dwell on the floor for twenty minutes first in order to give it chance to soak into the tile and get to work on the dirt. It was then worked into the floor using a rotary machine fitted with a black scrubbing pad, stiff hand brushes were along the grout lines. The soiled solution was picked up with a wet and dry vacuum and the floor was then rinsed with clean water to neutralise the tile and allow us to see which areas need further attention. Once I was happy the floor was given a final rinse and then left to dry overnight ready for sealing the next day.

Quarry Tiled Kitchen Floor During Cleaning

Sealing Quarry Tiles

On my return the floor was checked in a number of places with a damp meter to confirm it had dried which it had and it was then sealed using numerous coats of Tile Doctor Seal and Go which adds a nice shine to the floor as well as providing a surface seal that will help protect the tile from stains going forward. Sealing can take some time as you need to let the first coat dry before starting the second.

Quarry Tile Maintenance in a Daventry Kitchen

Kitchen Quarry Tile Cleaning and Sealing in Daventry Read More »

150 Year Old Quarry Tile Restoration in Northants School

Northampton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / 150 year old quarry tiles, cleaning services, lincolshire, Northants School, quarry tiles, school hallway, sealing quarry tiles, tile cleaning

Shown below are some photographs for a job we did recently restoring 150 year old Quarry Tiles at a School near Peterborough in Northamptonshire. The school had a lot of problems with this floor over the years and had called in another cleaning company several months prior but found that within weeks the sealant they had applied had started to bubble and peal off. The floor was suffering from ongoing dampness problems in some areas, which isn’t unusual for a floor in an old building as damp proofing is a relatively modern concept. Tile Doctor was called in to try to rectify the issues.

Cleaning Quarry Tiles

The work was booked to be carried out before Xmas and we spent hours stripping the tiles with Tile Doctor Pro-Clean agitated with a buffing machine fitted with a black scrubbing pad with little affect. To resolve the problem we resorted to getting down on hands and knees with a steamer and scrapper and spend the next 3 days taking off several coats of sealant and wax stripping quarry tile floor. The floors were then allowed to dry for ten days over Christmas.

Sealing Quarry Tiles

We returned in the New Year and took damp meter readings from the floor to ensure it was dry before sealing. The choice of sealer was vital given the floor was 150 years old and it was essential we chose one that was breathable to ensure any dampness could permeate up through the floor and not get trapped causing a problem. We settled for Tile Doctor Colour Grow which is breathable and offers good stain protection as well as enhancing the colour in the tile, two coats were sufficient to ensure to seal the floor. The last step was to buff the floor with a rotary machine fitted with a white pad to bring out the shine.

Quarry Tile Maintenance

The school had faced problems maintaining this floor in the past so I returned to site the following week to explain the best method for cleaning the floor going forward; this essentially involves using two buckets, once containing cleaning solution and another to rinse out the mop, I also gave them a complimentary bottle of Tile Doctor Neutral cleaner and a white buffing pad to point them in the right direction. Neutral Cleaner is a PH Neutral formula which unlike most acid products will not degrade the sealer over time.

Northants School Quarry Tiled floor restoration

150 Year Old Quarry Tile Restoration in Northants School Read More »

Quarry Tile Floor

2 Comments / Northampton Tile Cleaning, Quarry Tile Cleaning, Work History / Philip Vissian / cleaning services, floor restoration, kitchen, northampton, northamptonshire, quarry tile, sealing quarry tiles, Weldon

Quarry Tile Floor in Weldon, Northants

I think you will be impressed with these photographs from a Quarry Tile floor we did in Weldon recently. This quarry tiles were installed in the kitchen and went through to the dinning room, hallway and down stairs cloakroom, at total of around 40sq metres

The tiles were recenctly installed and the customer called us in because they were unhappy with the finished result. This can be a common problem with Tilers who do a great job of levelling, tiling and grouting a floor but struggle on their knowledge of sealers. They were hoping for a high gloss finish but were left with a very dull and patchy floor.

Quarry Tile Floor Cleaning

We stripped the entire floor first using Tile Doctor Pro-Clean assisted by a rotary machine fitted with a black pad. This removed most of the sealer, however, we encountered more problems with grout haze which had been trapped underneath the sealer and had not been cleaned off properly to begin with. Also there were still patches of the original sealer which had been applied over a damp floor. The grout haze was removed by hand with wire bushes and more Pro-Clean and then the entire area was blanket stripped. This is an interesting technique unique to Tile Doctor which involves applying Remove and Go mixed with Nanotech Ultra-Clean to tiles and then covering in plastic sheeting and left for several hours to allow to soak into tiles. We then used a steam stripper and a wet vacuum to pick up to remove and rinse off the products. The area was then left to dry for 2 days assisted by dehumidifiers.

Quarry Tile Floor Sealing

After this time we returned to site to take damp metre readings and once we were happy that all areas were dry, we then applied 5 coats of Tile Doctor Seal and Go to protect floors and provide the high gloss finish that the customer requested.
